VCE 2222 skylight in open position, showing solar panel for operation and included wireless remote for venting control.
<

22½ x 22½, VCE 2222, Electric Venting Curb Mount Skylight with Room Darkening Shade

VELUX
SKU:
VCE 2222 2004S
$1,660.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

VELUX VCE 2222 2004S – Electric Powered Venting Skylight (Curb Mount)

Introduce abundant natural light and fresh air into your home with the VELUX VCE 2222 Electric Fresh Air Curb-Mounted Skylight. This thoughtfully designed skylight offers convenient electric operation and enhanced comfort, making it an ideal upgrade for any living space.

Key Features & Benefits:

  • Effortless Electric Ventilation: Experience immediate fresh air with the quiet and efficient concealed motor, providing smooth and easy opening and closing at the press of a button.
  • Simple Hardwired Connection: This skylight is designed for direct electrical connection to a standard junction box and includes a generous 20-foot wire, offering flexibility during installation.
  • Intelligent Rain Sensor System: Rest assured during unexpected weather changes. The built-in rain sensor automatically detects moisture and promptly closes the skylight, safeguarding your home's interior.
  • Wide-Range Remote Control: Enjoy the convenience of operating your skylight from up to 110 yards away with the included battery-powered radio-frequency remote control.
  • Integrated Defense Against Insects: Keep your indoor environment comfortable and pest-free with the included insect screen, allowing fresh air in while keeping bugs out.
  • Premium Laminated LoĒ3 Glass: Benefit from exceptional energy efficiency for year-round comfort and the added safety and security of laminated glass.
  • User-Friendly Remote Operation: Easily control your skylight's functions with the intuitive VELUX remote control.
  • Streamlined Curb Mount Design: Engineered for straightforward installation on a site-built curb, ensuring a secure and weathertight seal to prevent leaks.
  • ENERGY STAR® Qualification: Take advantage of high-performance glass that improves insulation, contributing to lower energy costs.
  • Advanced Neat® Glass Coating: Enjoy a consistently clearer view with the innovative Neat® glass coating that actively reduces water spots and the accumulation of dirt.
  • Improved Indoor Acoustics: Create a more tranquil home atmosphere with the skylight's ability to minimize outside noise intrusion.

Technical Specifications:

  • VCE Size Code: 2222
  • Outside Curb (W" x H"): 25 1/2" x 25 1/2"
  • Rough Opening/Maximum Skylight Clearance (W" x H"): 26 5/8" x 26 5/8"
  • Inside Curb (W" x H"): 22 1/2" x 22 1/2"
  • Glass Type: Laminated LoĒ3 Glass (double-paned, argon-gas-filled)
  • Power Source: Hardwired (110v), includes 20 ft wire
  • Control: Battery-operated Radio-Frequency Remote Control
  • Features: Integrated Rain Sensor, Included Insect Screen

Warranty: 20 years on glass, 10 years on product, 10-year installation warranty (with VELUX flashing kit), 5 years on shades and controls.

VCE 2222 Sizing Dimensions VCE 2222
Inside curb (W"xH") 221⁄2 x 221⁄2
Outside curb (W"xH") 251⁄2 x 251⁄2
Maximum skylight clearance (W"xH") 265⁄8 x 265⁄8
Alternative banner alt

Thes System Includes:

  • Pre-installed white room-darkening Solar-powered shade

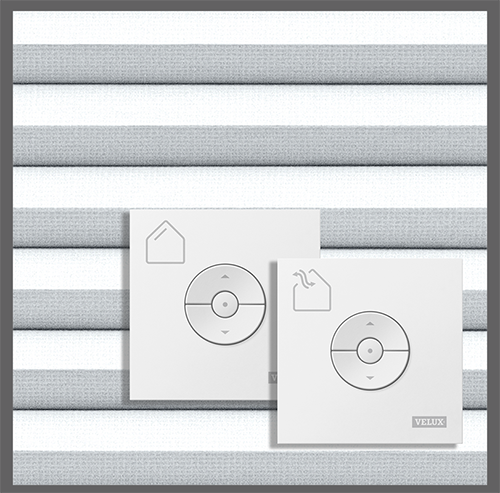

  • Skylight and shade remotes
  • Laminated safety glass
  • Insect screen
  • Rain sensor

Add more control, comfort and security!

Solar "Fresh Air" Skylight (VCE) - Curb Mounted

Want to compare Fresh Air, Curb Mount Skylights by size?  See the table below!

VCE Size Code 2222 2234 2246 3030 3046 3434 4646
Inside curb (W"xH") 22½ x 22½ 22½ x 34½ 22½ x 46½ 30½ x 30½ 30½ x 46½ 34½ x 34½ 46½ x 46½
Outside curb (W"xH") 25½ x 25½ 25½ x 37½ 25½ x 49½ 33½ x 33½ 33½ x 49½ 37½ x 37½ 49½ x 49½
Maximum skylight clearance (W"xH") 26⅝ x 26⅝ 26⅝ x 38⅝ 26⅝ x 50⅝ 34⅝ x 34⅝ 34⅝ x 50⅝ 38⅝ x 38⅝ 50⅝ x 50⅝
Alternative banner alt

VELUX VCE 2222 Electric Venting Skylight

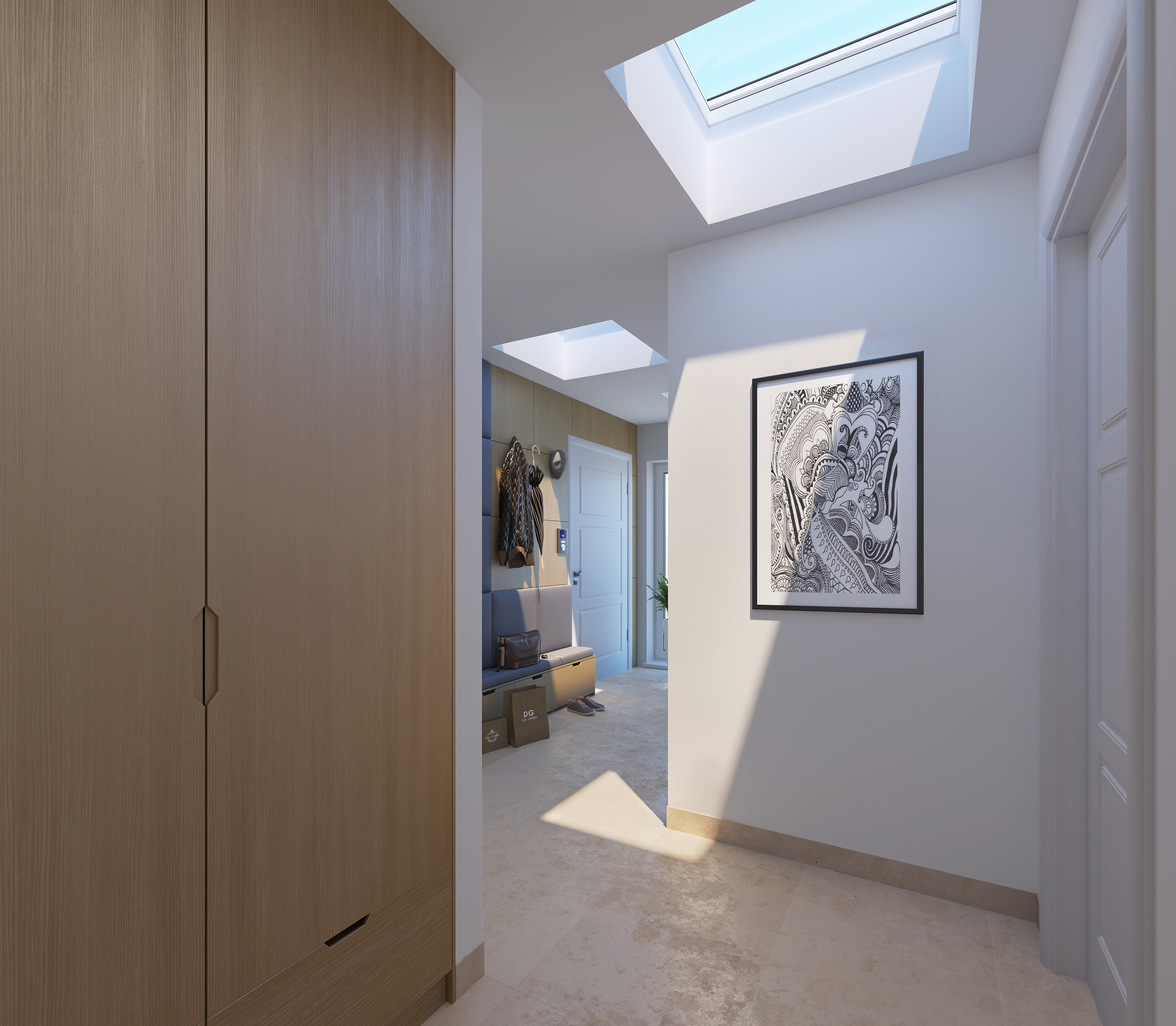

The VELUX VCE 2222 electric-powered venting skylight is compact, efficient, and ideal for hallways, closets, mudrooms, and other small interior spaces that crave natural light and fresh air.

Easily controlled by remote, this curb-mounted skylight includes laminated safety glass, a built-in rain sensor, and the option to pair with room-darkening solar-powered shades. Its minimal footprint makes it a go-to solution for narrow roof areas where daylight can make a big visual impact.

Create brighter, healthier spaces—even where you least expect it—with VELUX.

Curb Mount

A curb-mounted skylight is designed to sit on a raised curb structure built on the roof, making it a flexible option for both new installations and replacements.



Curb-mounted models are ideal for flat or low-slope roofs and can simplify installation—especially when replacing older units or working with thicker roofing materials.

Roof Pitch

Compatible with roof pitches from 0:12 to 20:12 (0° to 60°).



Ideal for flat and low-slope roofs, or where an existing curb is already in place. A great choice for retrofits, replacements, and homes with roofing materials like torch-down, TPO, modified bitumen, or tar & gravel.

Flashing

ECW Step Flashing – For use with shingle and shake roofs (minimum pitch 3:12). Designed to integrate with typical roofing profiles and provide weathertight protection around curb-mounted skylights.

EMW Metal Roof Flashing – Specifically made for standing seam and corrugated metal roofs, ensuring a custom fit and secure seal.

ECL Low-Profile Flashing – Suitable for low-slope and flat roofs, commonly used with membrane or rolled roofing systems.
