Curb Mount Solar Skylights
Shop by Skylight Size.

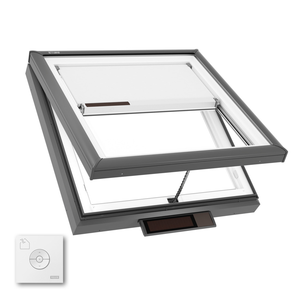

VCS - Solar Venting Skylights – Curb Mounted
| VCS Size Code | 2222 | 2234 | 2246 | 3030 | 3046 | 3434 | 3737 | 4622 | 4630 | 4646 |
|---|---|---|---|---|---|---|---|---|---|---|
| Inside Curb (W"xH") | 22½ x 22½ | 22½ x 34½ | 22½ x 46½ | 30½ x 30½ | 30½ x 46½ | 34½ x 34½ | 37½ x 37½ | 46½ x 22½ | 46½ x 30½ | 46½ x 46½ |
| Outside Curb (W"xH") | 25½ x 25½ | 25½ x 37½ | 25½ x 49½ | 33½ x 33½ | 33½ x 49½ | 37½ x 37½ | 40½ x 40½ | 49½ x 25½ | 49½ x 33½ | 49½ x 49½ |
| Maximum Skylight Clearance (W"xH") | 26⅝ x 26⅝ | 26⅝ x 38⅝ | 26⅝ x 50⅝ | 34⅝ x 34⅝ | 34⅝ x 50⅝ | 38⅝ x 38⅝ | 41⅝ x 41⅝ | 50⅝ x 26⅝ | 50⅝ x 34⅝ | 50⅝ x 50⅝ |
