46 ½ x 46 ½, VCS 4646, Solar Powered Venting Curb Mount Skylight with Room Darkening Shade

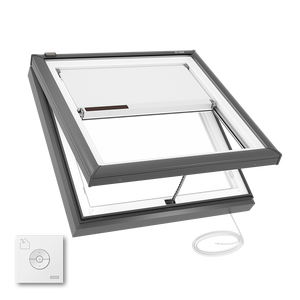

VELUXVELUX VCS 4646 – Solar Powered Venting Skylight (Curb Mount)
The VELUX VCS 4646 2004S is a large-format, curb-mounted solar venting skylight designed to bring light and fresh air into spacious rooms like great rooms, kitchens, and lofts. Its square 49½" x 49½" frame provides wide daylight coverage while allowing moisture and heat to escape naturally—all without the need for wiring or electricity.
This model features a built-in solar-powered room-darkening shade, offering powerful sun control and improved energy efficiency. The laminated LoE3 safety glass meets building codes for out-of-reach applications and comes with a 10-year hail warranty for extra peace of mind. It’s also equipped with a rain sensor that automatically closes the skylight when inclement weather is detected.
The VCS 4646 is ideal for flat or low-slope roof installations, and pairs with a range of compatible VELUX accessories and flashing kits for long-lasting, worry-free performance.
- Room darkening shade features white double pleated blackout cloth with a honeycomb structure and interior aluminum coating to block even the brightest sunlight
- Solar powered skylight and shade capture available sunlight to keep the system charged, even indirect light on cloudy days or when tree branches are overhead
- This skylight has an integrated rain sensor that automatically closes the skylight at the first sign of inclement weather
- Standard Laminated Low-E3 Safety Glass meets building codes for out of reach applications and comes with a 10-year hail warranty against glass breakage
- VELUX 10-year installation warranty when installed with appropriate VELUX flashing kit (sold separately) on a pitched roof
- Florida product approval 13560
- Texas Department of Insurance TDI SK03
VCS 4646 Sizing Dimensions | 4646 |
---|---|
Outside frame (W"xH") | 46 1⁄2 x 46 1⁄2 |
Rough opening/ Finished frame (W"xH") | 49 1⁄2 x 49 1⁄2 |
Maximum skylight clearance (W"xH") | 50 5⁄8 x 50 5⁄8 |
Check out the velux remote control upgrades!

A curb-mounted skylight is designed to sit on a raised curb structure built on the roof, making it a flexible option for both new installations and replacements. It’s especially well-suited for flat or low-slope roofs and simplifies installation when replacing older units or working with thicker roofing materials.
Compatible with roof pitches from 0:12 to 20:12 (0° to 60°), curb-mounted models are ideal for retrofits, homes with existing curbs, and roofing types like torch-down, TPO, modified bitumen, or tar & gravel.
Flashing options include ECL low-profile flashing for flat or low-slope roofs with membrane or rolled roofing; ECW step flashing for shingle or shake roofs with a minimum 3:12 pitch; and EMW flashing, custom-fit for standing seam and corrugated metal roofs.
